Flasher / In-Circuit Programmer

Flasher ATE

Flasher ATE is perfectly suited for high volume mass production environments. The modular system uses a communication main board at its heart, that distributes the commands received from an ATE, ICT or a similar automated production handler system to the programming modules. Each programming module can be set up with individual configurations and firmware. The Gang Programmer is capable to program multiple devices in parallel, whether these devices are equal or part of a multi-device system, Flasher ATE can handle all production setups.

Main features

• In-System Programmer (ISP)
• Ultra fast programming
• Control interfaces for ATEs and similar production process handlers
• Switchable target power
• J-Flash for an easy setup
• Scalable solution with up to 10 individual channels
• Parallel channels, no demultiplexing required
• Galvanic isolation of each module
• Target supply voltage may be up to 15V
• Gang Programming

Flasher Secure

Flasher Secure

Flasher Secure is a mass production programming system, capable of protecting the vendor’s IP regardless of the production site. It provides full control over the programming process at contract manufacturers (CM) and similar environments.

Main features

• Authenticated production
• Production volume control
• CM administration and setup portal
• Ultra fast programming
• Support for Cortex-M/R/A, RX, PPC
• Prevents production of counterfeit units
• No overhead in programming time
• Secure your production at contract manufacturers

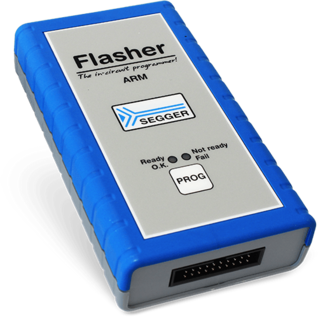

Flasher ARM

Flasher ARM is a programming tool for microcontrollers with on-chip or external Flash memory and ARM7/9/11 or Cortex-M/R/A core. Flasher ARM is designed for programming flash targets with the J-Flash software or stand-alone.

Main features

• Stand-alone JTAG/SWD programmer (Once set up, Flasher can be controlled without the use of PC program)
• Support for ARM7/9/11 and Cortex-M/R/A cores
• Ethernet interface
• No power supply required, powered through USB

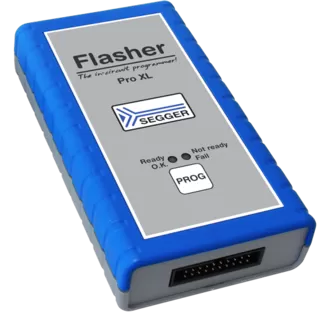

Flasher PRO & PRO XL

Flasher PRO is a programming tool for microcontrollers with on-chip or external Flash memory and ARM7/9/11, Cortex-M/R/A, RX or PPC core. Flasher PRO is designed for programming flash targets with the J-Flash software or stand-alone.

Main features

• Stand-alone JTAG/SWD programmer (Once set up, Flasher can be controlled without the use of PC program)
• Ethernet interface
• Supports internal and external flash devices
• Wide range of devices are supported
• Free firmware updates
• 128 MB internal NAND flash, used for storing configuration and data files
• Serial in target programming supported

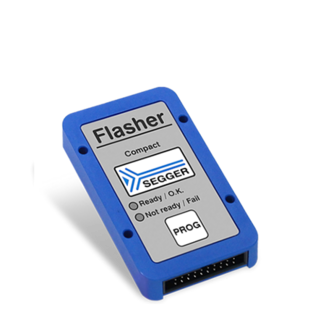

Flasher Compact

Flasher Compact is the compact sibling of the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space is limited.

Main features

• Compact universal stand-alone programmer
• Holes for mounting make target side assembly easy
• Includes the Flasher software package
• Includes the license to program all supported devices
• No additional licenses required. No hidden costs. No future costs.
• Future proof: Software, firmware updates, and new flash loaders, are free of charge

Flasher Portable PLUS

Flasher Portable PLUS is a programming tool for microcontrollers with on-chip and external Flash memory.

Flasher Portable PLUS has been designed to fill the need of an extremely portable, production grade Flash programmer used for in-field firmware updates. No need to be tethered to an outlet, it is powered by standard batteries. Flasher Portable programs flash targets in stand-alone mode or via J-Flash PC software.

Main features

• Stand-alone in-circuit programmer (Once set up, Flasher can be controlled without the use of a PC program)
• Powered by internal battery, no external power supply required
• Up to 10 hours programming with one battery charge
• Supports having up to eight configurations/data files being stored on Flasher

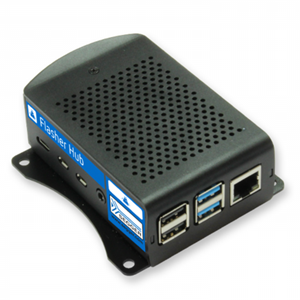

Flasher Hub

High-volume gang programming at maximum speed

The Flasher Hub controls multiple Flasher Compacts so that they program simultaneously. Up to 24 Flashers can be connected to create a single, powerful gang programmer for efficient high-speed parallel programming.

Main features:

• Scalability: Up to 24 individual parallel programming channels with their own circuit memory
• Reliability
• Longevity
• Built-in web & FTP server for easy setup
• Multi-platform: Includes application software for Linux, macOS, and Windows
• No license required. No hidden costs. No future costs.
• Future proof: Software, firmware updates, and new flash loaders, are free of charge.
